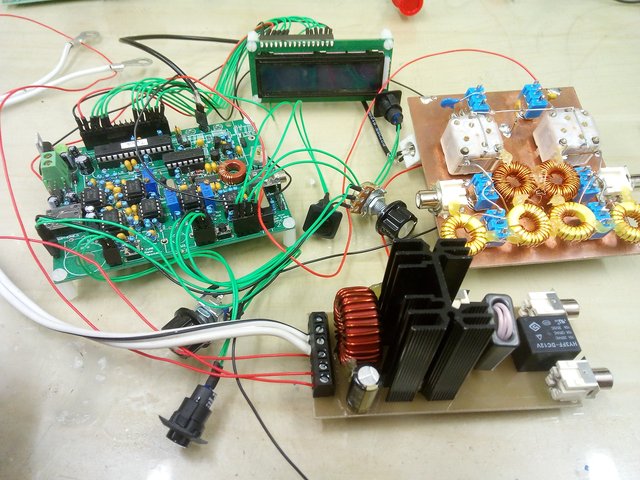

This is Hans Summer's excellent QCX transceiver. I've modified it by removing the input BPF filtering. This involved removing a winding on the transformer and not fitting a few components. The plan is to use the Variable BPF as a receiver bandpass filter and combined LPF filter for transmit. A 10-15W PA  added and a full multiband QCX is possible!
